REFERENCE 5 落地式扬声器

  • 销售额
  • 常规价格 ¥128,700.00

颜色

三路落地式扬声器旗舰产品

REFERENCE 5 能够呈现出您从未注意到的微妙细节,发挥出表演的全部魅力,牵绊着您的心绪。

REFERENCE 5 配备四个低音单元及最新 Uni-Q 同轴共点单元,体现了 KEF 对不懈追求创新的激情。无论是音乐还是电影,它都能发挥出表演的全部魅力,牵绊着您的心绪。

探索 THE REFERENCE 系列

SOUND
REFERENCE 5

这款三路落地式扬声器搭载4个性能强大的165mm (6.5 inch)低音驱动器,KEF最新款125mm (5 inch) Uni-Q 阵列,以及卓越的新型25mm (1 inch)铝制倒相式高音扬声器。低音展现出完美的轻快感和可控性,与中音相融,打造摄人心魄的精度和深度。

详细信息

规格

CABINET FINISH

Deep Piano Black, Satin American Walnut, Luxury Gloss Rosewood

重量

60.2kg (132.7lbs)

尺寸

H x W x D with grille and terminal :
1350 x 205 x 470 mm (53.1 x 8.0 x 18.5 in. )

H x W x D with grille, terminal & plinth :
1397 x 349 x 470 mm (55 x 13.7 x 18.5 in.)

设计

三路低音反射式

单位

一对

FREQUENCY RANGE

Typical in room bass response: 25Hz (-6dB)
Free Field - Short port: 35Hz - 45kHz (-6dB)
Free Field - Long port: 32Hz - 45kHz (-6dB)

频率响应

40Hz - 35kHz (±3dB)

分频点

350Hz, 2.8kHz

最大输出音压

116 dB (peak sound pressure level at 1m with pink noise)

扩大器规格

50-400W

SENSITIVITY

90dB (2.83V/1m)

HARMONIC DISTORTION

2nd & 3rd harmonics (90dB, 1m)
<0.5% 40Hz – 100kHz
<0.2% 200Hz – 10kHz

IMPEDANCE

8 Ohms (min.3.2 Ohms)

驱动单元

Uni-Q 同轴共点单元:
高音: 25mm (1in.) 铝制通风单元
中音:125mm (5in.) 铝制单元
低音单元:低音: 4 x 165mm (6.5in.) 铝制单元

分频点

350Hz, 2.8kHz

文档下载

THE REFERENCE Brochure
THE REFERENCE Manual
THE REFERENCE 8b Manual
THE REFERENCE White Paper
THE REFERENCE Information Sheet



*KEF 保留根据研发进展对产品规格作出修正或更改的权利,恕不另行通知。错漏不在此限定。
奖项回顾

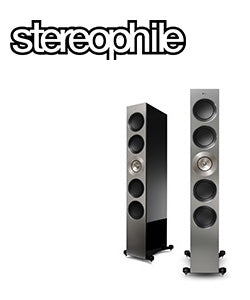

STEREOPHILE PRODUCT OF THE YEAR EDITOR’S CHOICE AWARD


Stereophile Magazine — 2017

REVIEW – STEREOPHILE MAGAZINE


"The immaculately finished KEF’s gave me all I need for musical and sonic satisfaction." — 2017

HOME CINEMA CHOICE REFERENCE STATUS, HIGH END HERO


"This system is British surround high-fidelity at the utter state-of-the-art. And it’s easily worthy of its Reference name." - 2016 全面評論

GRAND PRIX AWARD


HiVi Magazine — 2015

STEREO SOUND GRAND PRIX 2014


Stereo Sound Magazine - 2014

AUDIO EXCELLENCE SILVER AWARD 2015


Audio Accessory Magazine - 2015

THE BEST OF THE SPEAKER IN 2014


Stereo Magazine - 2014

HI-FI NEWS & RECORD REVIEW - OUTSTANDING PRODUCT


"They create a soundstage effortlessly disengaged from the boxes that are producing it... On vocal tracks especially, the REFERENCE 5s seemed to get out of the way completely and let the singer's performance become as intimate and heartrending as you could wish… This is clearly an outstanding product." - 2014

EUROPEAN HIGH-END AUDIO 2014-2015


"…its above‐average sensitivity, excellent bass extension and handsome appearance earns the Reference 5 EISA's High‐End Audio accolade." - 2014

5 STAR REVIEW - HI-FI WORLD


"Admirably accurate and netural, these KEFs will suit those who like to hear their music as it should be." - 2017
